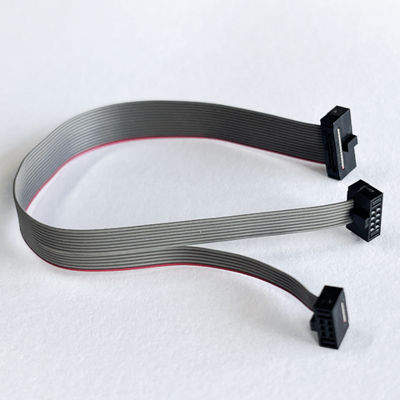

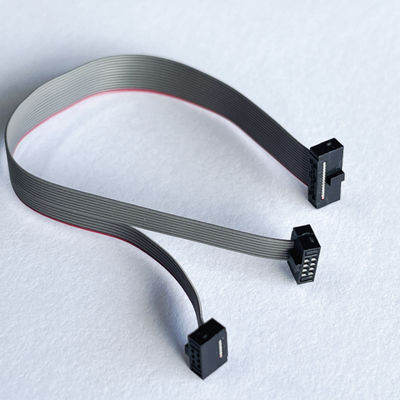

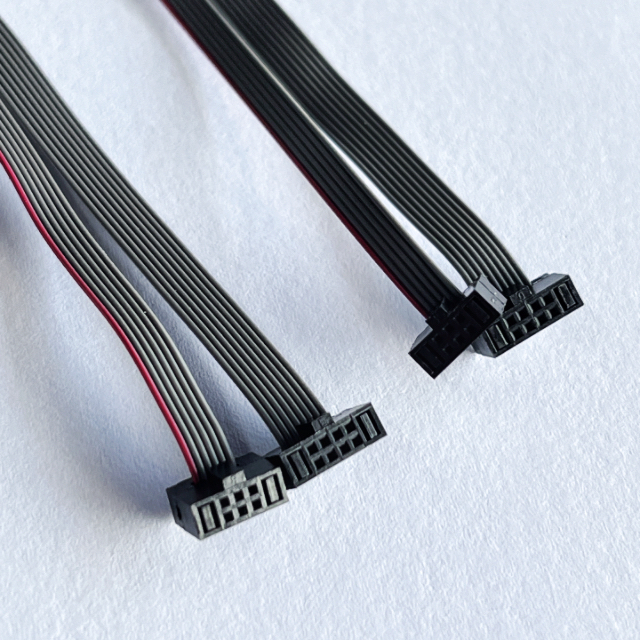

6 8 10PIN 20PIN 40PIN Female to Female Socket 1.27mm Flat IDC Ribbon Cable

Produktdetails:

Herkunftsort:	China
Markenname:	HONSHI
Zertifizierung:	ROHS/SGS/UL
Modellnummer:	B21XXAAXXXXB01

Zahlung und Versand AGB:

Min Bestellmenge:	100 Stück
Preis:	0.1-0.5 usd
Verpackung Informationen:	Tray/Pe-Tasche
Lieferzeit:	7-15 Tage
Zahlungsbedingungen:	T/T, Paypal
Versorgungsmaterial-Fähigkeit:	500000kpcs

Kontakt

Ausführliche Produkt-Beschreibung

Anwendung:	Elektronisch	Produktname:	Flachbandkabel
Kontaktmaterial:	Messing	Überzug:	Ni/gold Flash/5u'gold/10u'gold/15u'gold/30u'gold
Bewertungsstrom:	1A/2A/3A	Durchgangswiderstand:	20mΩ max
Betriebstemperatur:	40 C ~ + 105	Paket:	PE-Tasche/Band und Rolle
Länge:	Angepasste Länge	Stifte:	6Pin-100Pin (angepasst)
Draht:	30AWG UL-Kabel

6 8 10PIN 20PIN 40PIN Female to Female Socket 1.27mm Flat IDC Ribbon Cable

Specific material electrical parameters
IDC Connector Specifications:		Wire specifications:
Rated Current:	1.5/2.0/3.0AMP	Insulator Material:	PVC
Contact Resistance:	20mΩ Max	Conductor:	7/0.127mm(Tin Plated Copper)
Withstand Voltage:	500V AC/DC	Cable Color:	Wires Red Marking Grey Side
Insulation Resistance:	1000MΩ Min	Cable Length	Be Customized
Operation Temperature:	-40°c to +105°c	Cable Testing:
Connector:	IDC Socket	Contact Resistance:	3Ω Max.
Pitch:	1.27/2.0/2.54mm	Insulation Resistance:	10MΩ Min.
Positions:	6P~100P	Withstand Voltage:	DC300V, 5second
Contact Material:	Brass	100% Open & Short Test
Contact Plating:	Au or Sn Over Ni	All materials comply with"ROHS" environmental protection standards
Insulator Material:	PBT(UL94V-0)

Drawing:FLAT CABLE.pdf

Item name: Flat Cable

1. Product features: IDC Flat Ribbon Cable Assemblies,compliant with RoHs,could be customized,UL2651/UL2678 30awg/28awg/26awg,0.635mm,1.0mm,1.27mm,2.0mm,2.54mm pitch all available.

2. Material: copper alloy, copper alloy, nickel or nickel alloy.

3. Products are widely used in:industrial and power control,electronic communications,LED photoelectric,liquid crystal display,servo system,medical equipment,automotive electronics,computer motherboards and consumer electronics etc.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.
2. Quick response and effective communication, refined service timely delivery.
3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

Management Concept
Responsibility Innovation Integrity Win-Win;

Team Culture
Thanksgiving Valute Respects Team efforts;

Service Purpose
Quality fisrt Customer Satisfaction Professinal Improving;

Sustainable Manner
HONSHI grow in a sustainable manner,to support our valued customers with flexibly customized interconnect solutions.

For assistance with Compliance, please contact sales@dghonshi.com.
