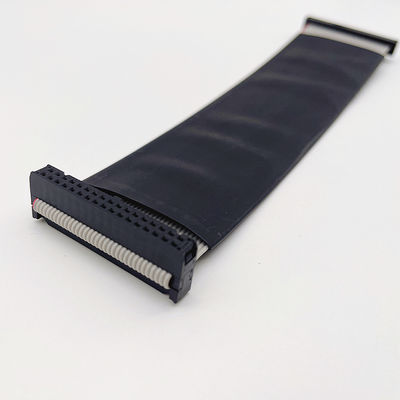

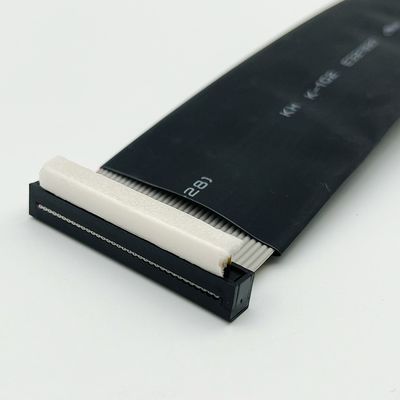

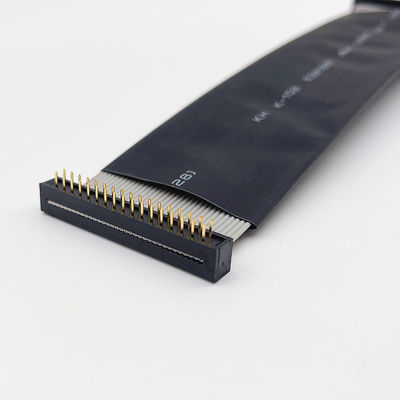

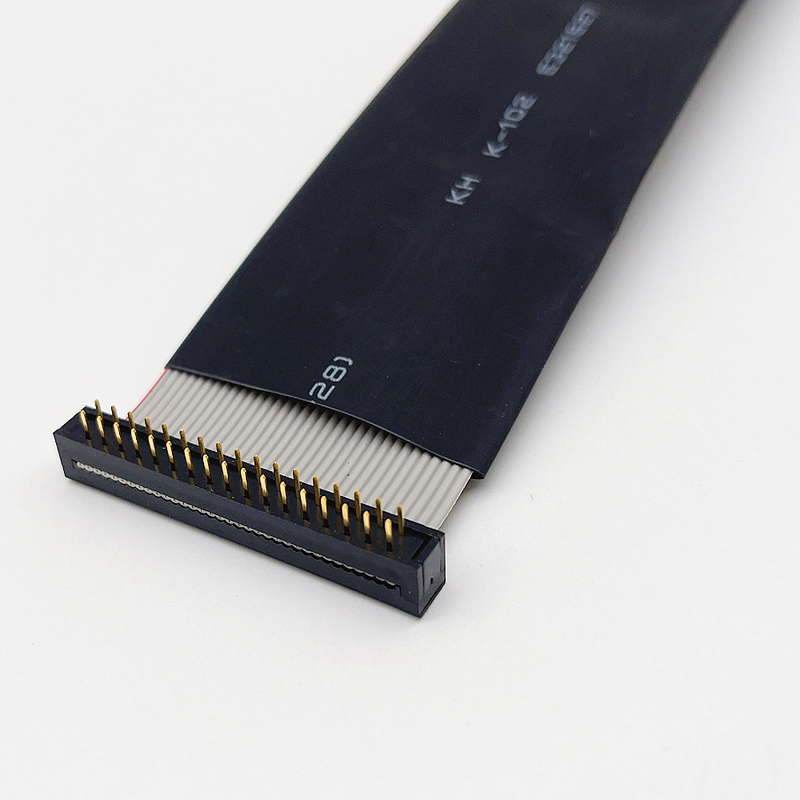

Dip Socket 2.54mm Flat Cable 6-64Pin Electrical Wire To Board Connector Flat Wire Harness

Dip Socket 2.54mm Flat Cable 6-64Pin Electrical Wire To Board Connector Flat Wire Harness

  • Dip Socket 2.54mm Flat Cable 6-64Pin Electrical Wire To Board Connector Flat Wire Harness
  • Dip Socket 2.54mm Flat Cable 6-64Pin Electrical Wire To Board Connector Flat Wire Harness
  • Dip Socket 2.54mm Flat Cable 6-64Pin Electrical Wire To Board Connector Flat Wire Harness
  • Dip Socket 2.54mm Flat Cable 6-64Pin Electrical Wire To Board Connector Flat Wire Harness
Dip Socket 2.54mm Flat Cable 6-64Pin Electrical Wire To Board Connector Flat Wire Harness
Produktdetails:
Herkunftsort: China
Markenname: HONSHI
Zertifizierung: ISO9001/ISO14001/ROSH/Reach
Modellnummer: B25xxaaxxxb01
Zahlung und Versand AGB:
Min Bestellmenge: 100 Stück
Preis: 0.1-0.5 usd
Verpackung Informationen: Tray/Pe-Tasche
Lieferzeit: 7-10 Tage
Zahlungsbedingungen: T/T, Paypal
Versorgungsmaterial-Fähigkeit: 500000kpcs
Kontakt
Ausführliche Produkt-Beschreibung
Anwendung: Elektronisch Produktname: Flachbandkabel
Kontaktmaterial: Messing Material: Kupferleiter aus der Dose
Draht: 26-28AWG UL-Kabel Länge: Angepasste Länge
Paket: PE-Tasche/Band und Rolle Beschreibung: Elektrisches Produkt
MOQ: 100pcs Dienstleistung: OEM-Service, jede spezielle Größe, Farbe, Designs sind akzeptabel.

DIP 2.54mm 6-64pin Cable Electrical Wire To Board Connector For Flat Cable Of Wire Harness



Specific material electrical parameters
IDC Connector Specifications: Wire specifications:
Rated Current: 1.5/2.0/3.0AMP Insulator Material: PVC
Contact Resistance: 20mΩ Max Conductor: 7/0.127mm(Tin Plated Copper)
Withstand Voltage: 500V AC/DC Cable Color: Wires Red Marking Grey Side
Insulation Resistance: 1000MΩ Min Cable Length Be Customized
Operation Temperature: -40°c to +105°c Cable Testing:
Connector: IDC Socket Contact Resistance: 3Ω Max.
Pitch: 1.27/2.0/2.54mm Insulation Resistance: 10MΩ Min.
Positions: 6P~100P Withstand Voltage: DC300V, 5second
Contact Material: Brass 100% Open & Short Test
Contact Plating: Au or Sn Over Ni All materials comply with"ROHS" environmental protection standards
Insulator Material: PBT(UL94V-0)





Dip Socket 2.54mm Flat Cable 6-64Pin Electrical Wire To Board Connector Flat Wire Harness 0 Drawing:FLAT CABLE.pdf

Dip Socket 2.54mm Flat Cable 6-64Pin Electrical Wire To Board Connector Flat Wire Harness 1

Dip Socket 2.54mm Flat Cable 6-64Pin Electrical Wire To Board Connector Flat Wire Harness 2



Item name: Flat Cable


1. Product features: IDC Flat Ribbon Cable Assemblies,compliant with RoHs,could be customized,UL2651/UL2678 30awg/28awg/26awg,0.635mm,1.0mm,1.27mm,2.0mm,2.54mm pitch all available.


2. Material: copper alloy, copper alloy, nickel or nickel alloy.


3. Products are widely used in:industrial and power control,electronic communications,LED photoelectric,liquid crystal display,servo system,medical equipment,automotive electronics,computer motherboards and consumer electronics etc.

Service idea:


1. Committed to providing customers with customized, small batch, multi variety, one-stop services.
2. Quick response and effective communication, refined service timely delivery.
3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

Management Concept
Responsibility Innovation Integrity Win-Win;

Team Culture
Thanksgiving Valute Respects Team efforts;

Service Purpose
Quality fisrt Customer Satisfaction Professinal Improving;

Sustainable Manner
HONSHI grow in a sustainable manner,to support our valued customers with flexibly customized interconnect solutions.
