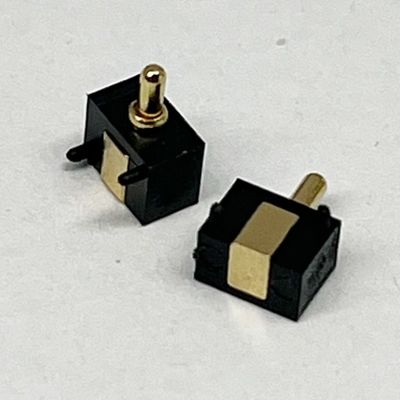

Name: POGO Pin connector side type 1Pin Horizontal Surface Mount Charging pin for Music activated lights
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: A013001MG0SE055X01
Price: 0.05 USD
Availability: InStock

Startseite Produkte Pogo-Pin-Anschluss

POGO Pin connector side type 1Pin Horizontal Surface Mount Charging pin for Music activated lights

Produktdetails:

Herkunftsort:	China
Markenname:	HONSHI
Zertifizierung:	ISO9001/ISO14001/CE/ROHS/REACH
Modellnummer:	A013001MG0SE055X01

Zahlung und Versand AGB:

Min Bestellmenge:	100 Stück
Preis:	0.05-1.25 usd
Verpackung Informationen:	PE-Tasche,Rohr,Rohrverpackung
Lieferzeit:	10 ~ 15 Tage
Zahlungsbedingungen:	T/T, Paypal
Versorgungsmaterial-Fähigkeit:	990000 Stück

Kontakt

Ausführliche Produkt-Beschreibung

Spezifikation::	Pogo Pin -Anschluss	Modellnummer::	Die Kommission wird die Kommission auffordern, die erforderlichen Maßnahmen zu treffen.
Tonhöhe::	2,5 mm	Die Position::	1p
Geschlecht::	Männlich	Typ:	SMT-Art
Material:	Zugewicht: Brass 3604	Gehäuse:	Schwarzes PA46
Überzug:	Goldpalt ((3U") oder nach Maß	Salznebel:	72 Stunden
Probe:	Unterstützende Proben

POGO Pin connector side type 1Pin Horizontal Surface Mount Charging pin for Music activated lights

Specific material electrical parameters
Electrical Performance:		Mechanical Performance:
Rated Current:	1.0AMP	Spring force:
Contact Resistance:	50mΩ Max	Work Stroke:
Rated Voltage:	DC 12V	Maximum Working stroke:
Operation Temperature:	-40°c to +105°c	Mechanical Life	100,000 cycles
Resistance to solder heat:	260℃±5℃ 20s±2s
Material
Plunger:	Brass 3604	Barrel:	Brass 3604
Spring:	SUS304	Housing:	PA46 Black
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type, side hole type, etc.

Plating selection: regular gold plating, nickel plating, etc. Current range: regular 0.5-3A, high current 5-80A.

Pogo Pin connector spacing can be divided into: 1.27mm,2.0mm,2.5mm,2.54mm,3.0mm,4.0mm, plastic materials commonly used PA46.
